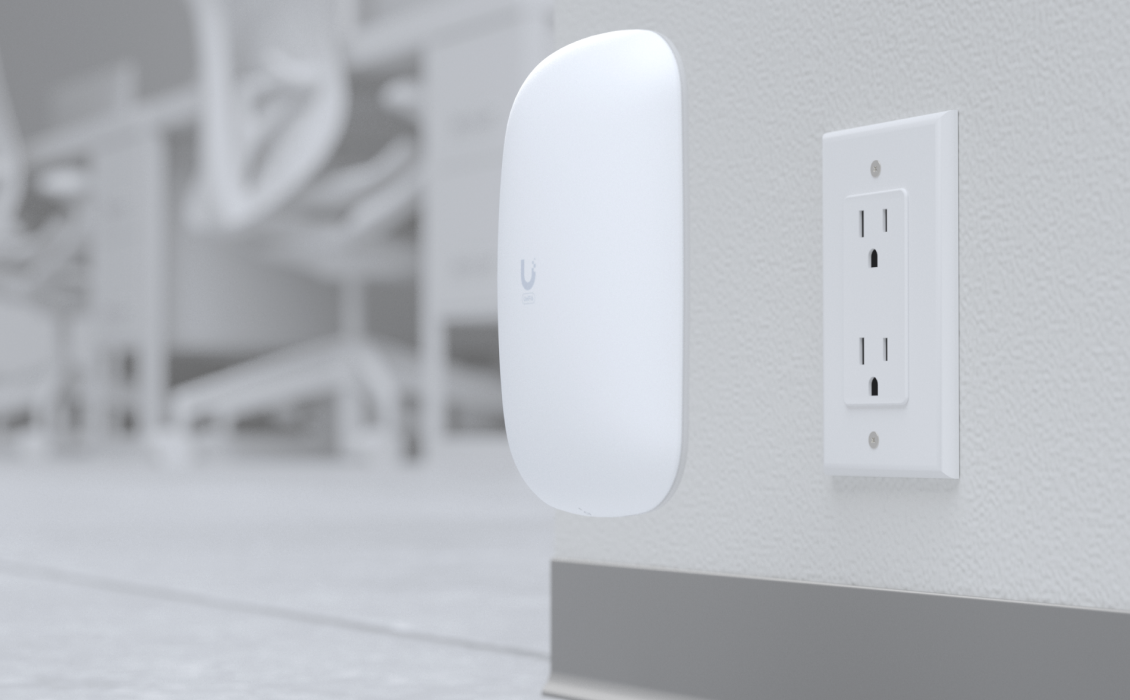

UniFi U6 Extender Access Point
Key Features
- Wi-Fi 6 Technology: The U6 Extender features the latest Wi-Fi 6 (802.11ax) standard, offering faster speeds, better efficiency, and improved performance in dense environments.
- Dual-Band Performance: Supports both 2.4 GHz and 5 GHz bands, offering optimal performance for different types of devices.
- High-Speed Throughput: Capable of up to 3.0 Gbps total throughput, making it ideal for expanding coverage and handling high bandwidth demands.
- Extender Mode: Designed to extend the range of your existing UniFi network, ensuring more reliable coverage in larger areas.
- Seamless Integration: Easily integrates with existing UniFi setups and can be managed from the UniFi Network Controller or mobile app.
- Easy Installation: Simple to set up with PoE (Power over Ethernet) for convenient power and data transfer using a single cable.
- Security: Supports WPA3 security, ensuring a secure connection for all devices in your network.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | UniFi U6 Extender |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Bands | Dual-Band (2.4 GHz & 5 GHz) |
| 2.4 GHz Throughput | Up to 1.2 Gbps |
| 5 GHz Throughput | Up to 1.8 Gbps |
| Maximum Aggregate Throughput | Up to 3.0 Gbps |
| Max Power Consumption | 12W |
| Power Method | 802.3af PoE |
| Ethernet Ports | 1 x Gigabit Ethernet Port (PoE) |
| Range | Up to 150 meters (492 feet) |
| Client Capacity | Supports up to 300 clients |
| Security | WPA3, WPA2, Enhanced Encryption |
| Management | UniFi Network Controller, UniFi Mobile App |
Frequently Asked Questions
1. How does the UniFi U6 Extender differ from other UniFi access points?
The U6 Extender is specifically designed to expand the range of your existing UniFi network. It provides Wi-Fi 6 support, dual-band performance, and up to 3.0 Gbps of throughput, making it ideal for boosting coverage in larger spaces.
2. Can the UniFi U6 Extender be used independently?
No, the U6 Extender is intended to extend the coverage of an existing UniFi Wi-Fi network. It is not a standalone access point and requires integration with other UniFi devices.
3. What is the maximum coverage range of the U6 Extender?
The UniFi U6 Extender offers a range of up to 150 meters (492 feet), depending on the environment and obstacles present.
4. Can I manage the U6 Extender remotely?
Yes, the U6 Extender can be easily managed remotely using the UniFi Network Controller or the UniFi mobile app, allowing for seamless setup and configuration.
5. What is the power method for the UniFi U6 Extender?
The U6 Extender is powered via 802.3af PoE (Power over Ethernet), which simplifies installation by allowing both power and data to be transmitted through a single Ethernet cable.
