UniFi AC-LR (UAP-AC-LR) Access Point
Key Features
- Long-Range Coverage: Extended range and performance, ideal for larger spaces and coverage in long-distance deployments.
- Dual-Band Wi-Fi: Operates on both 2.4 GHz and 5 GHz bands with up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
- Power over Ethernet (PoE): Powered by 802.3af PoE for simplified installation and flexibility in deployment.
- Seamless Roaming: Provides seamless roaming across multiple APs for mobile users in larger areas.
- Scalable Network: Easily scalable with UniFi Controller, supporting hundreds of users in enterprise environments.

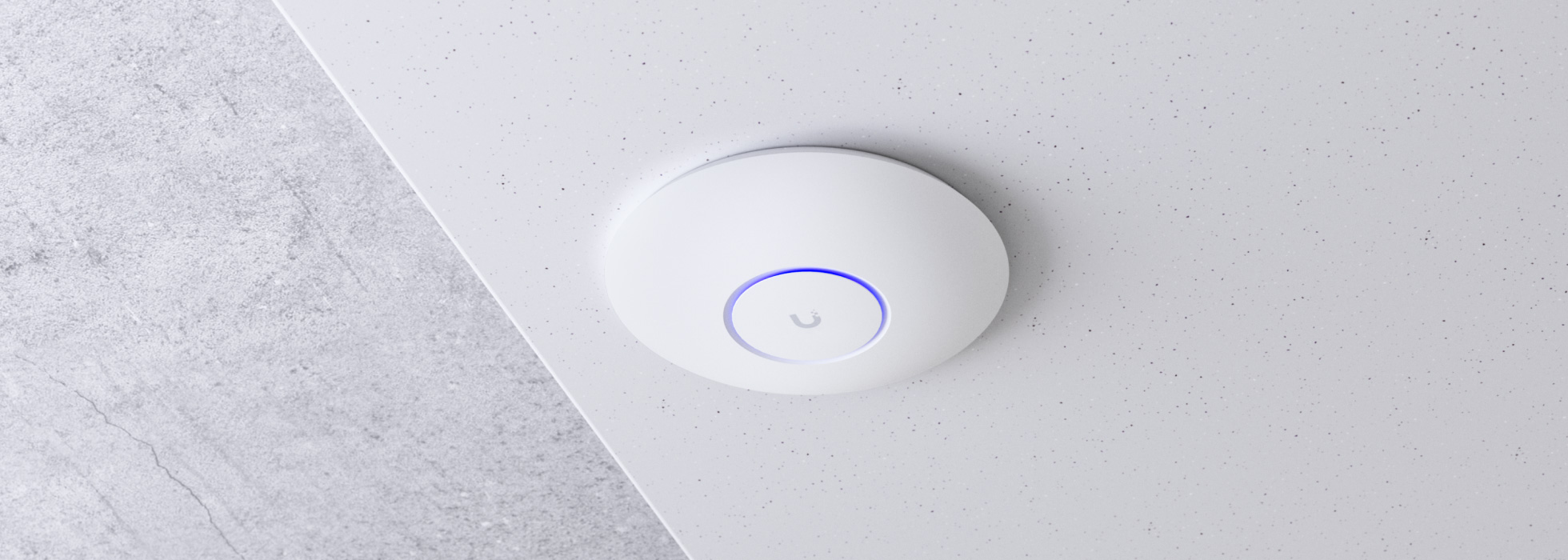

- Compact Design: Discreet and compact design suitable for ceiling or wall mounting.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | UniFi AC-LR (UAP-AC-LR) |
| Wi-Fi Standard | 802.11a/b/g/n/ac (Wi-Fi 5) |
| Bands | Dual-Band (2.4 GHz and 5 GHz) |
| 2.4 GHz Throughput | Up to 300 Mbps |
| 5 GHz Throughput | Up to 867 Mbps |
| Max Power Consumption | 6.5W |
| Power Method | 802.3af PoE |
| Range | Up to 183 meters (600 feet) |
| Client Capacity | 200+ clients |
| Weather Resistance | Indoor use only |
Frequently Asked Questions
1. What is the maximum coverage area of the UAP-AC-LR?
The UAP-AC-LR can cover up to 183 meters (600 feet) under optimal conditions.
2. Does the UAP-AC-LR support both 2.4 GHz and 5 GHz bands?
Yes, the UAP-AC-LR supports dual-band operation with 2.4 GHz and 5 GHz frequencies.
3. How many devices can the UAP-AC-LR support?
The UAP-AC-LR can support up to 200+ devices in a typical environment.
4. What is the power requirement for the UAP-AC-LR?
The UAP-AC-LR is powered by 802.3af PoE (Power over Ethernet).
5. Is the UAP-AC-LR suitable for outdoor use?
No, the UAP-AC-LR is designed for indoor use only.
