UniFi In-Wall HD (UAP-IW-HD) Access Point
Key Features
- Dual-Band Wi-Fi: Supports both 2.4 GHz and 5 GHz frequencies with a combined throughput of up to 2033 Mbps (300 Mbps on 2.4 GHz and 1733 Mbps on 5 GHz).

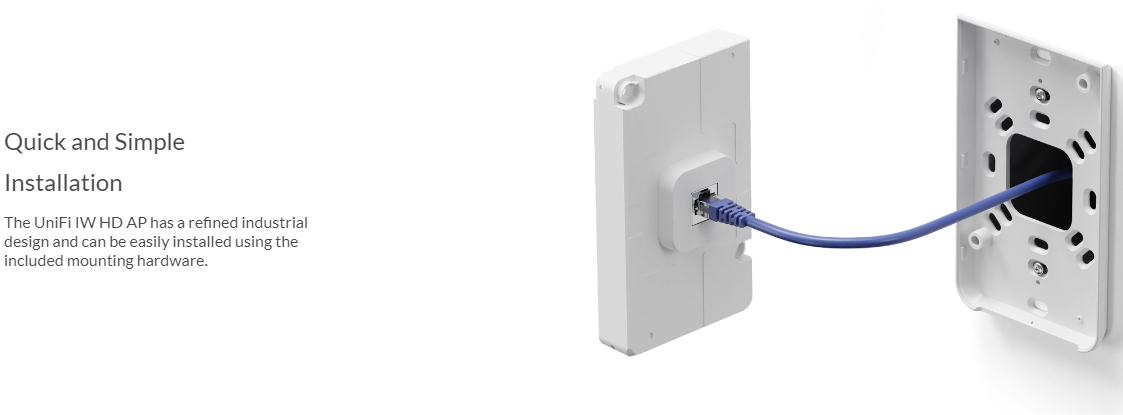

- Compact In-Wall Design: Designed to replace standard Ethernet wall outlets, providing both wired and wireless network access from a single device.
- Integrated Ethernet Ports: Includes 4 Gigabit Ethernet ports (1 PoE input, 1 PoE passthrough, and 2 standard ports) for connecting wired devices.
- Power over Ethernet (PoE): Supports 802.3af/at PoE for simplified installation without needing additional power outlets.
- High Client Capacity: Capable of supporting over 200+ concurrent clients, ideal for high-density environments like hotels and offices.
- Seamless Integration: Easily integrates with existing UniFi networks and can be managed through the UniFi Controller software.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | UniFi In-Wall HD (UAP-IW-HD) |
| Wi-Fi Standard | 802.11a/b/g/n/ac (Wi-Fi 5) |
| Bands | Dual-Band (2.4 GHz and 5 GHz) |
| 2.4 GHz Throughput | Up to 300 Mbps |
| 5 GHz Throughput | Up to 1733 Mbps |
| Max Power Consumption | 10.5W |
| Power Method | 802.3af/at PoE |
| Ethernet Ports | 4 Gigabit Ports (1 PoE In, 1 PoE Passthrough, 2 Standard) |
| Range | Up to 100 meters (328 feet) |
| Client Capacity | Up to 200+ clients |
| Mounting | In-Wall (Standard Ethernet Outlet) |
Frequently Asked Questions
1. What is the maximum coverage area of the UniFi In-Wall HD?
The UAP-IW-HD can cover up to 100 meters (328 feet) under optimal conditions.
2. Does the UAP-IW-HD support both 2.4 GHz and 5 GHz bands?
Yes, the UAP-IW-HD supports dual-band operation with 2.4 GHz and 5 GHz frequencies.
3. How many devices can the UAP-IW-HD support?
The UAP-IW-HD can support up to 200+ devices, making it ideal for high-density environments.
4. What is the power requirement for the UAP-IW-HD?
The UAP-IW-HD is powered by 802.3af/at PoE (Power over Ethernet).
5. Can the UAP-IW-HD be used in outdoor environments?
No, the UAP-IW-HD is designed for indoor use only, typically installed in wall outlets.
